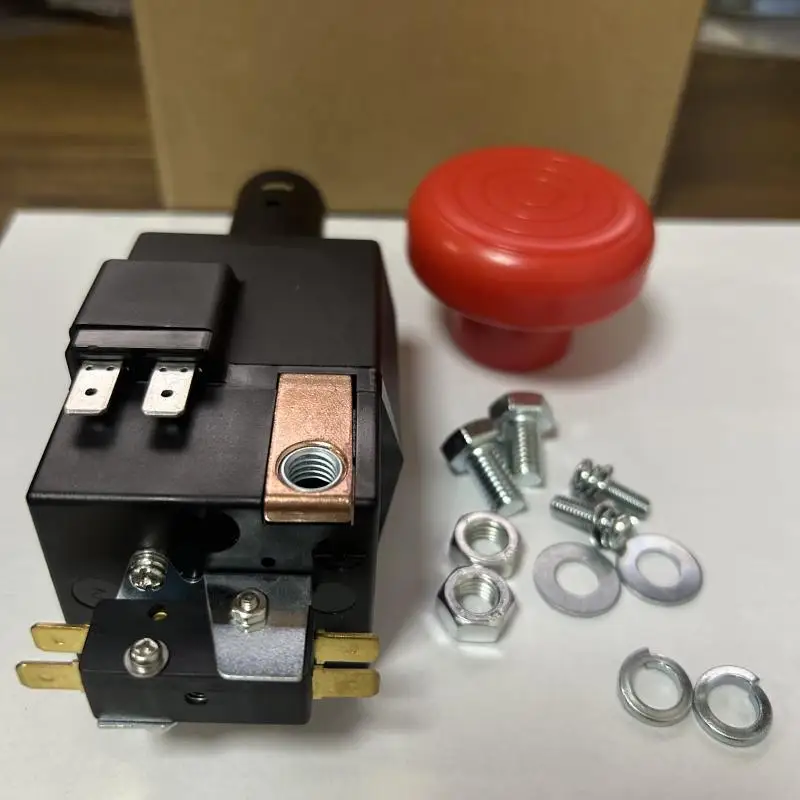

Emergency Switch 2440306180 for Haulotte STAR 10 Optimum 8 Compact 10 Compact 12RTE

Emergency Switch  2440306180 for Haulotte Haulotte STAR 10  Optimum 8  Compact 10  C

Description:

1.Parts No.:  2440306180

2:Used For:  Haulotte STAR 10、 Optimum 8、 Compact 10、 Compact 12RTE

Specification:

Voltage:          24v

Color:             Black + Red

Weight:           0.7kg

PKG Size:        150*110*70 mm

Package:         Carton box

Application

InterruptedRating ( Ith )Uninterrupted

Thermal Current Rating :125A

Intermittent Current Rating:

30% Duty :230A

40% Duty: 200A

50% Duty: 175A

60% Duty:160A

70% Duty:150A

Rated Fault Current Breaking Capacity (Icn) 5ms Time Constant:(In accordance with UL583*)

Blowouts :800A at 96V D.C.

No Blowouts: 800A at 48V D.C.

Rated Fault Current Breaking Capacity (Icn) Resistive Load:(In accordance with UL508*)

Blowouts: -

No Blowouts: -

Maximum Recommended Contact Voltages

Blowouts: -

No Blowouts:48V

Typical Voltage Drop per pole across New Contacts at 100A: 40mV

Mechanical Durability: > 3,000,000 Cycles

Coil Voltage Available (Us) (Rectifier board required for A.C.) ：6 - 240V

This switch has been designed to provide a rapid means of disconnecting batteries or other power supplies in the event of serious electrical faults. It combines the dual function of a manual disconnect and coil operated line contactor. The benefits of this design include compact size and reduced
installation costs combined with an electrical capacity sufficient for small and medium size electric vehicles.

Whilst the switches are primarily intended for use with battery powered vehicles, they are also suitable for use with static power systems. All types are
capable of safely rupturing full load battery  currents in the event of an emergency.

Package Included:

1pcs x  Emergency Switch  2440306180 for Haulotte Haulotte STAR 10  Optimum 8  Compact 10  C
